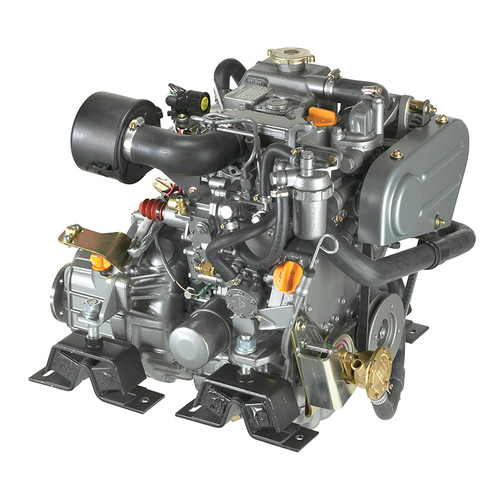

Dealerships & Products Yanmar Marine Leisure 2YM15

YM & GM Series 7–21kW (9–29HP) Famed for their reliability, the GM Series diesels – single and two cylinder – feature pre-combustion chamber indirect injection. The all-new YM Series has been introduced, with the arrival of the 3YM20 15.3 kW (21HP) and 3YM30 21kW (29HP) three-cylinder engines.



This is the latest technology for quiet, smooth power at the lowest possible weight. GM Series 1GM10E (9HP/7kW) Lightweight single-cylinder auxiliary diesel with a straight drive. Built for optimum power to weight and rugged durability. Runs and runs, smoothly, quietly and cleanly.



Call now for our best price and availability. Contact us on 01803 752242 or james.bland@darthaven.co.uk



Specification Value
Engine 2YM15
Operation 4-stroke
Cylinder Configuration 2 in-line
Bore (mm) 70
Stroke (mm) 74
Displacement (litres) 0.570 ltr [34.7 cu in]
Power (hp) 10 kW / 14 mhp
Max engine speed (rpm) 3600 rpm
Downloads
Operation Manual Engine : Erratum 2YM15 Download
Operation Manual Saildrive: SD20 Download
Technical drawings Gear: 2YM15 - KM2P-1 Download
Technical drawings Saildrive: 2YM15C - SD20 Download
Warranty Handbook Download
Specification Datasheet- 2YM15 Download
Specification Datasheet Saildrive SD25 Download
