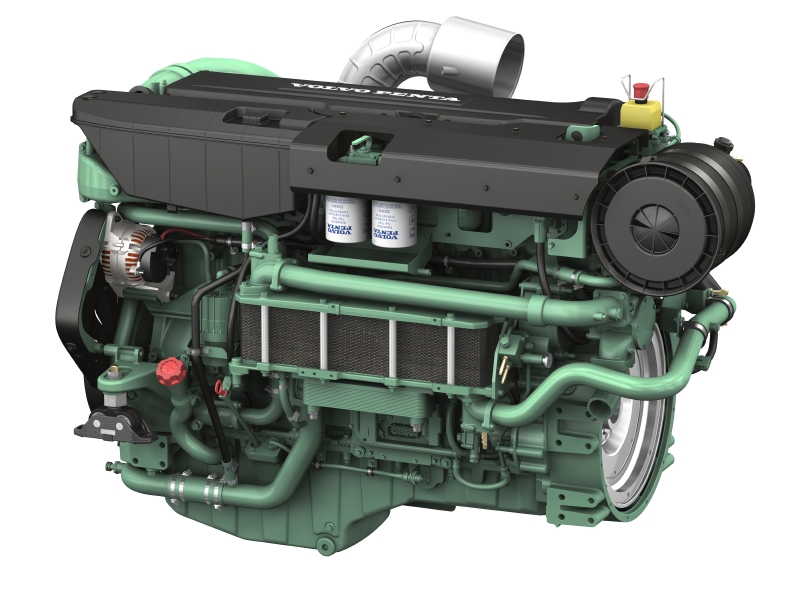

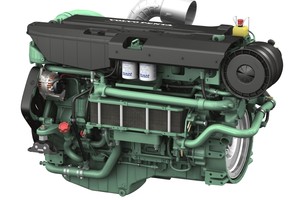

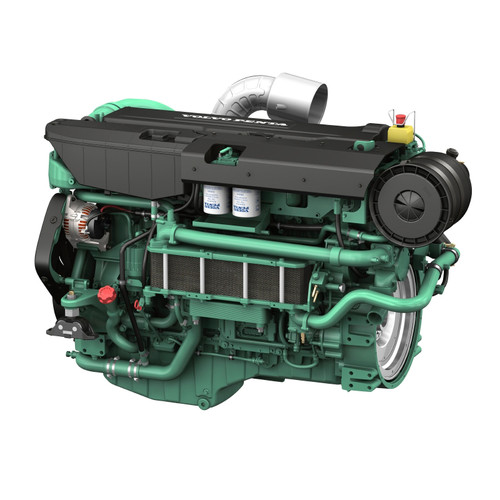

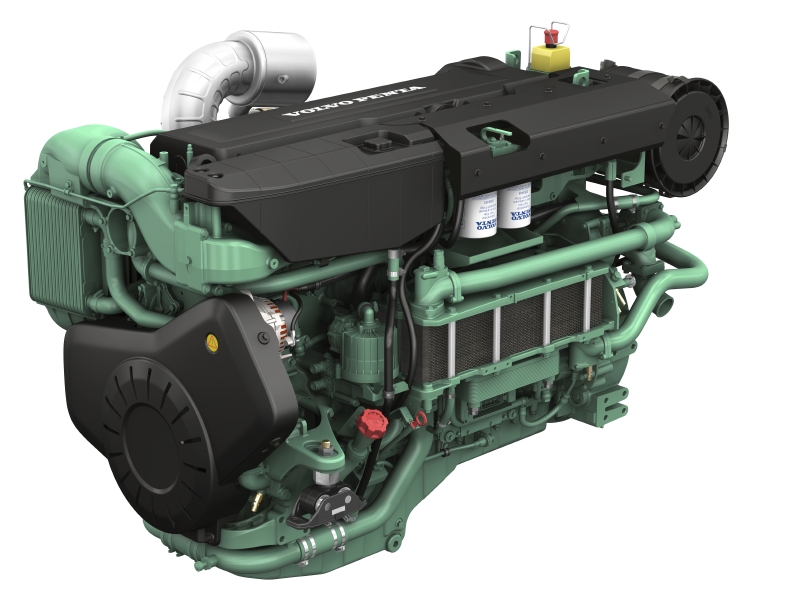

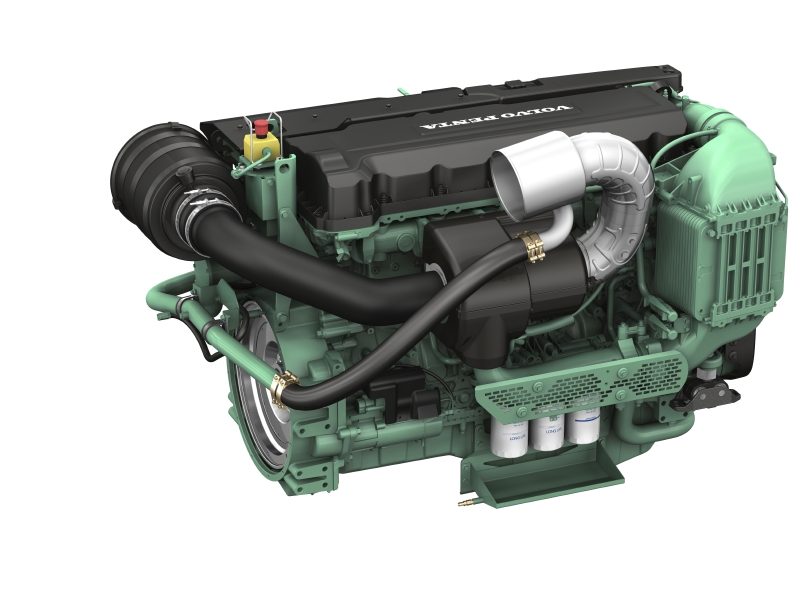

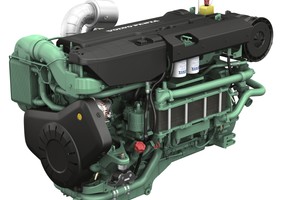

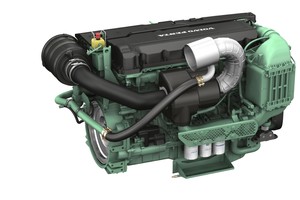

Dealerships & Products Volvo Penta Inboard - Leisure & Commercial D13 MH

The engine features the latest design of mid position twin entry waste gate turbo with pulse charging. Higher turbo pressure at low rpm will secure excellent acceleration. The optimised inlet valve timing ensures high torque at low rpm and low emissions due to lower pressure and temperature in the cylinders.

With the new injectors with variable needle opening pressure noise is further reduced. All this technical features results in a very strong and smooth running engine with world-class performance, combined with low emissions and low fuel consumption.

D13 MH (FE) certified for EU IWW, IMO NOx - D13 MH certified for EU IWW, IMO NOx, CCNR Stage 2 and US EPA Tier 3

Ready to install from - £POA

Call now for our best price and availability. Contact us on 01803 752242 or email sales@darthaven.co.uk

Specification Value
Engine D13B-N MH
Production Period 2012-
Operation 4-stroke
Cylinder Configuration 6
Bore (mm) 131mm
Stroke (mm) 158mm
Compression Ratio 18.5:1
Displacement (litres) 12.78
Power (hp) 400-600
Max engine speed (rpm) 1800 - 1900
Downloads
Product bulletin D13 MH Download
Product bulletin D13 MH (fuel efficient) Download
Technical data Rating 1. 291 hp D13-MH (FE) HE & KC Download
Technical data rating 1. 400 hp D13-MH & D13-MH (FE) HE / KC / RC Download
Technical data Rating 1. 450 hp D13MH & D13-MH (FE) HE / KC / RC Download
Technical data rating 1. 500 hp D13-MH & D13-MH (FE) HE / KC / RC Download
Marine Commercial Rating Definitions Download
Technical drawing D13 MH CC Download
Technical drawing D13 MH bobtail, heat exchanger cooled Download
Technical drawing D13MH bobtail, keel cooled Download
Technical drawing bobtail, radiator cooled Download
