Dealerships & Products Volvo Penta Inboard - Leisure & Commercial D13-800

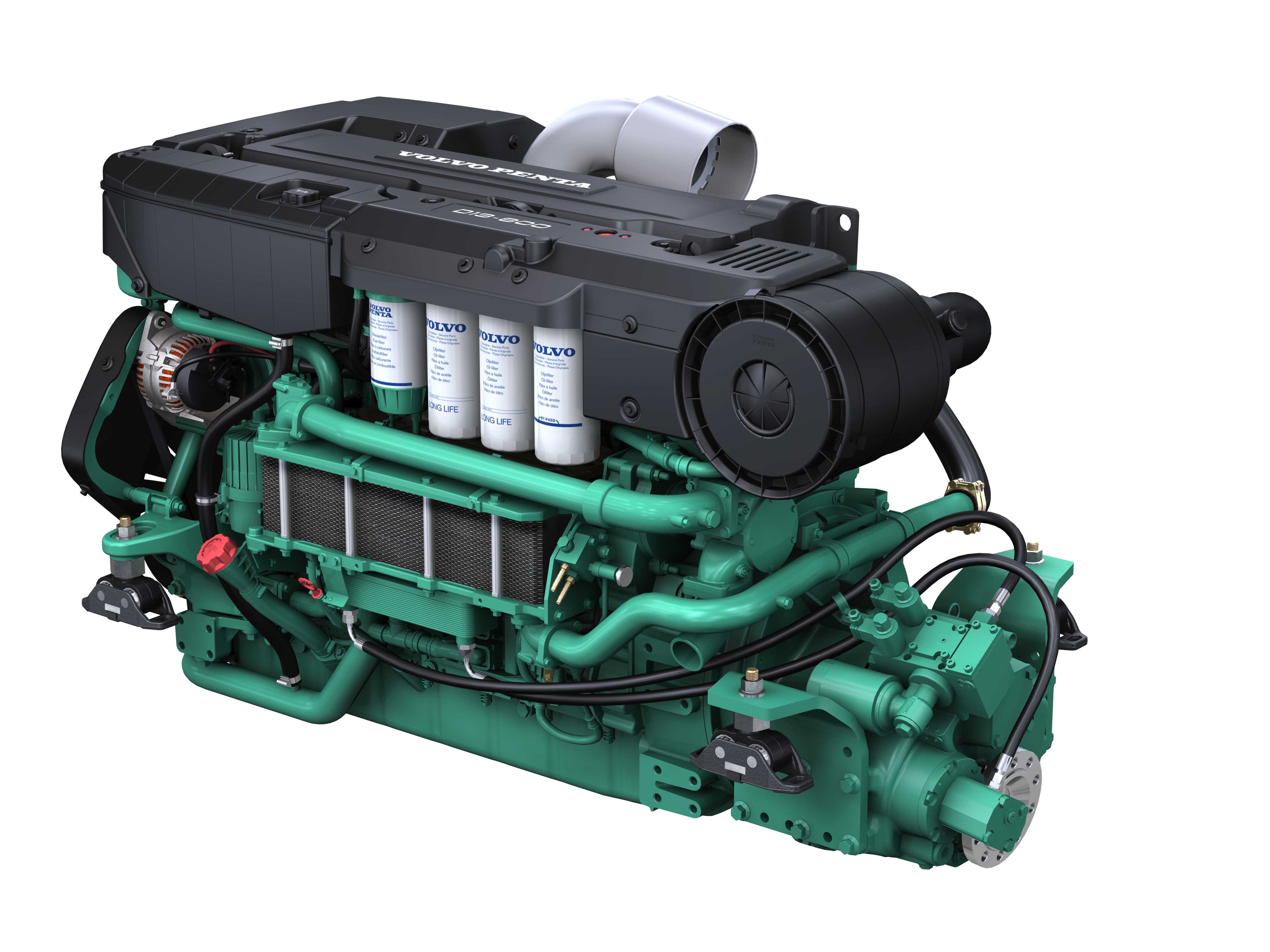

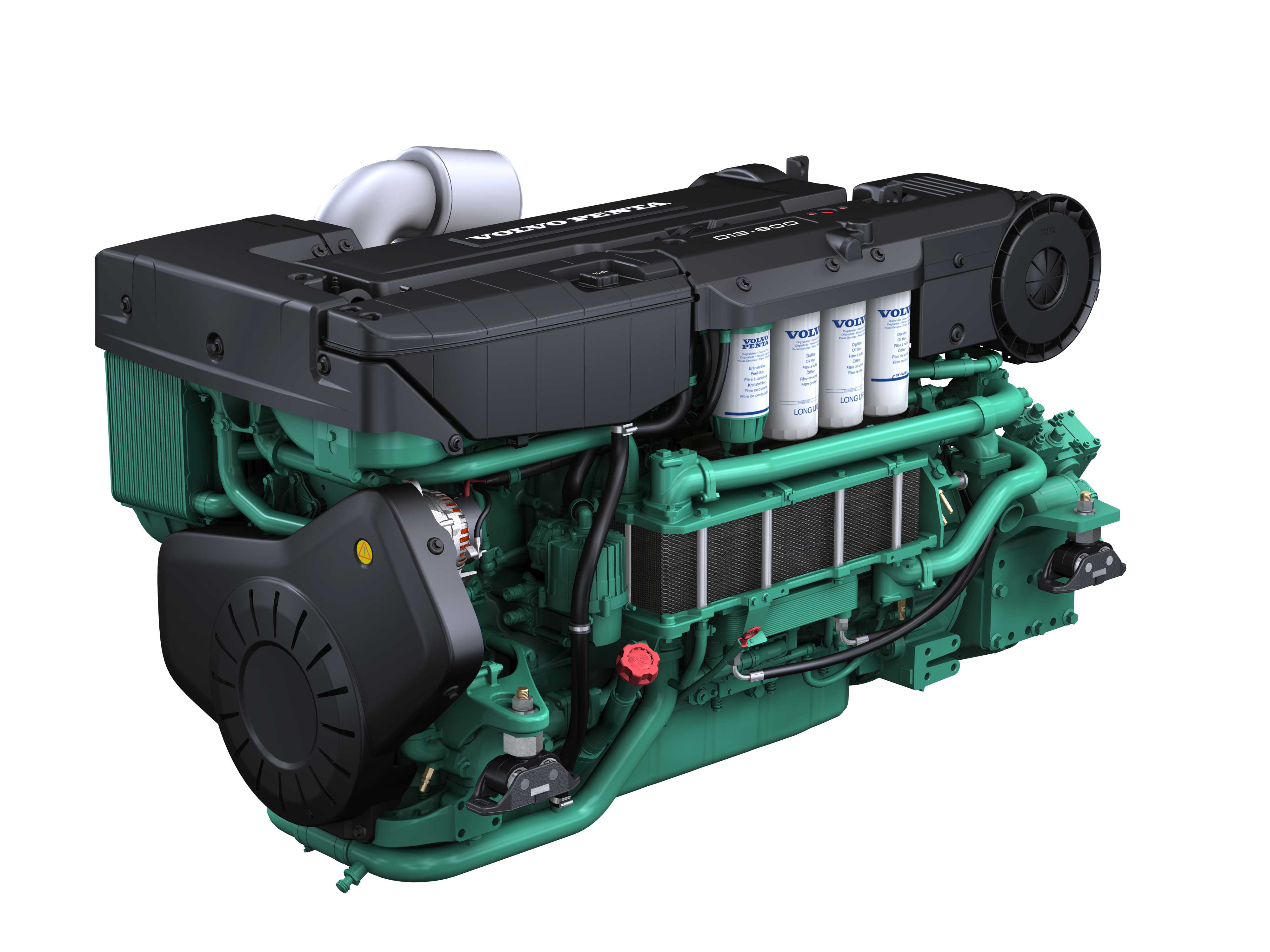

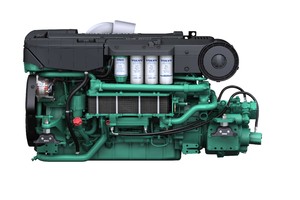

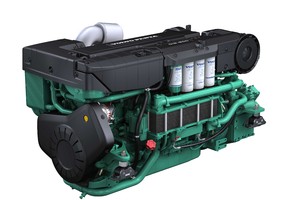

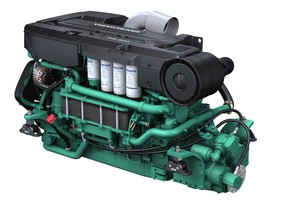

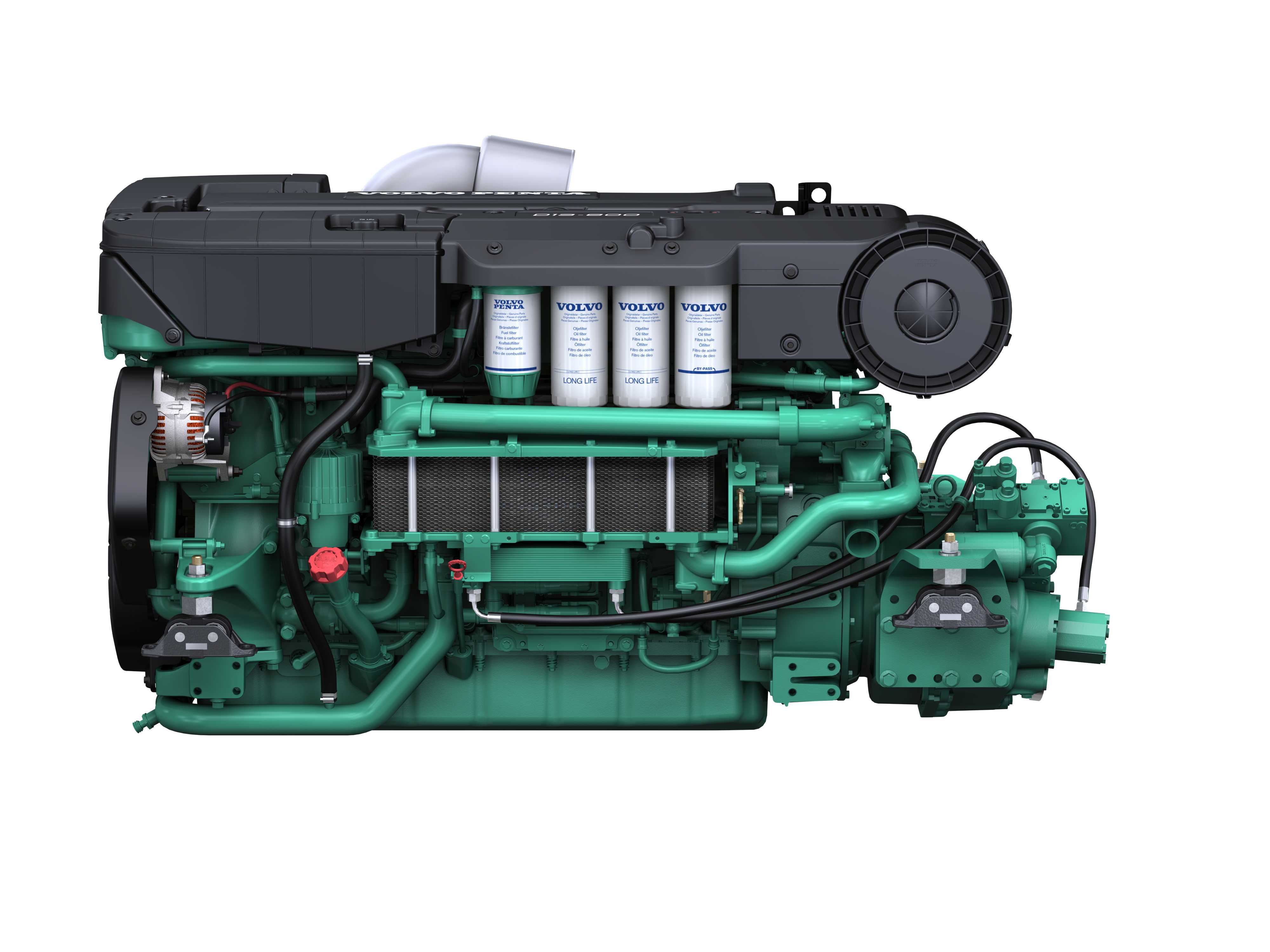

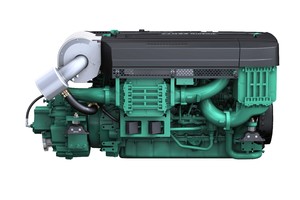

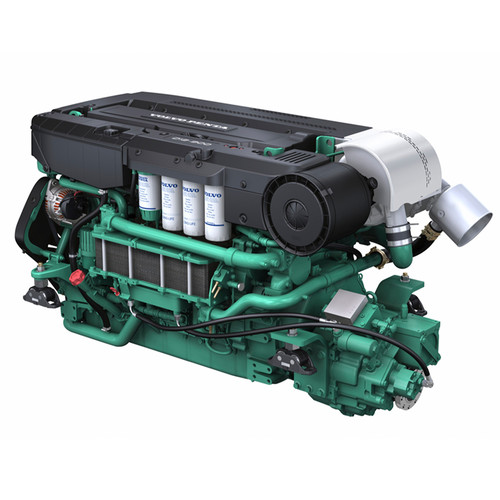

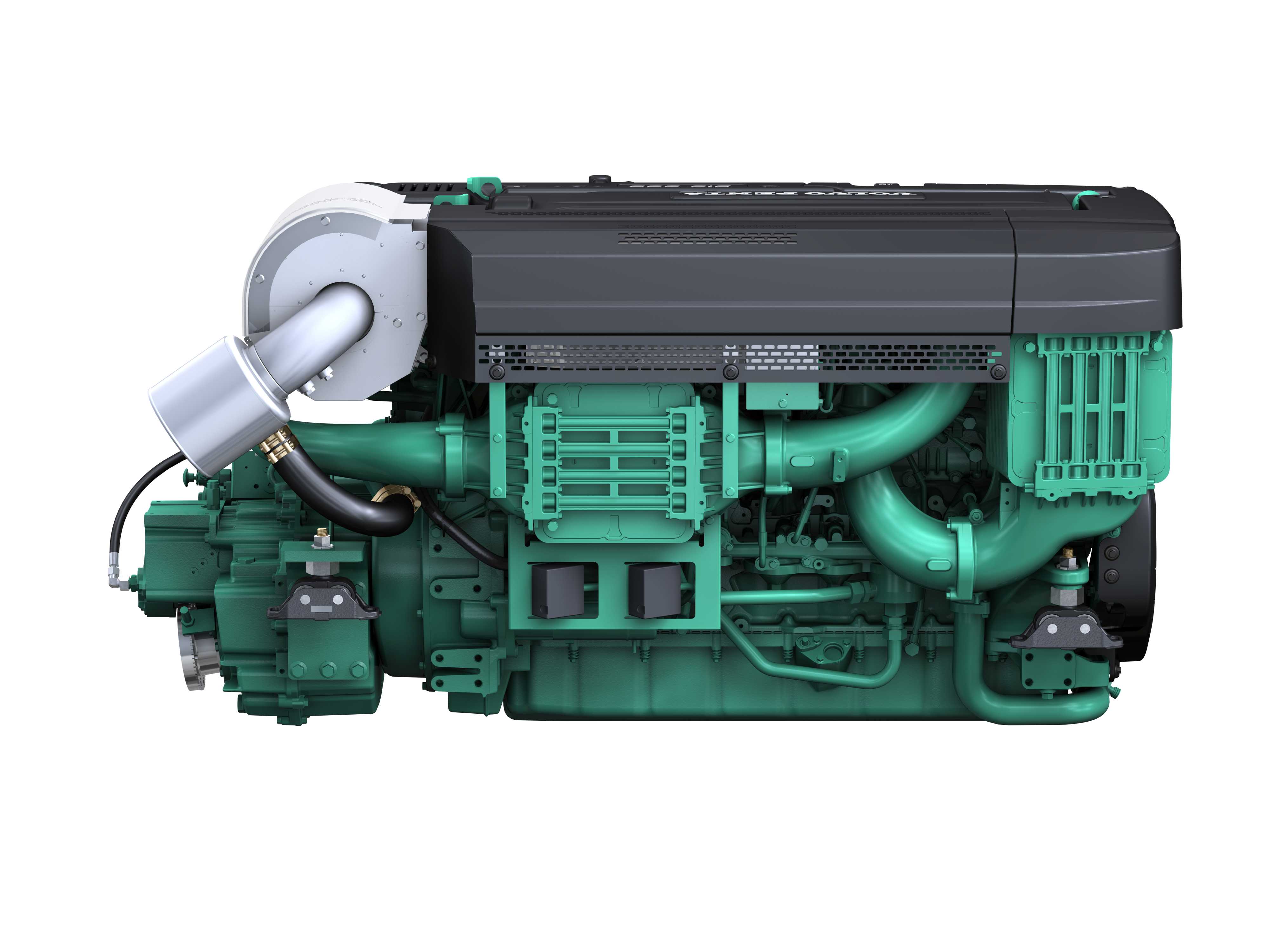

Volvo Penta’s D13 in-line 6 diesel is developed from the latest design in modern diesel technology. The engine has a robust block with ladder frame, high pressure unit injector system, 4 valves per cylinder, and twin turbo technology in combination with dual stage charge air coolers.

All the above together with the electronic engine management system results in a very smooth running engine with world-class diesel performance, combined with low fuel consumption and emissions.

Ready to install from - £POA

Call now for our best price and availability. Contact us on 01803 752242 or email sales@darthaven.co.uk

Specification Value
Engine D13C1-A MP
Production Period 2013-
Operation 4-stroke
Cylinder Configuration 6
Bore (mm) 131
Stroke (mm) 158
Compression Ratio 16.5:1
Displacement (litres) 12.78
Power (hp) 800
Max engine speed (rpm) 2300
Downloads
Product bulletin D13-800 Download
Technical data D13-800 Download
Technical drawings bobtail Download
Technical drawings ZF325A Download
Technical drawing ZF325IV Download
Technical drawing ZF335IV Download
Technical drawings MGX5096A Download
