Dealerships & Products Volvo Penta Inboard - Leisure & Commercial D11-510

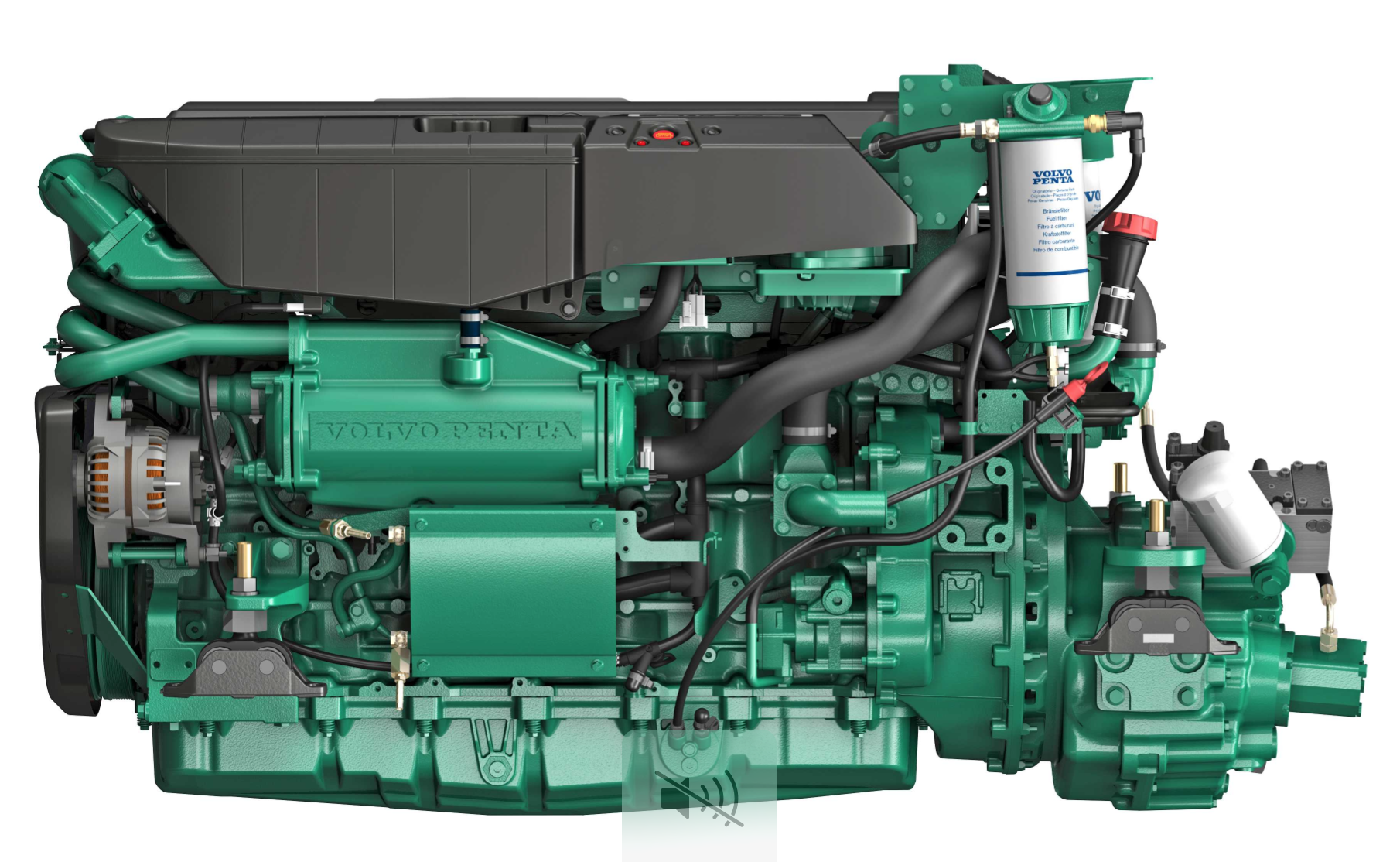

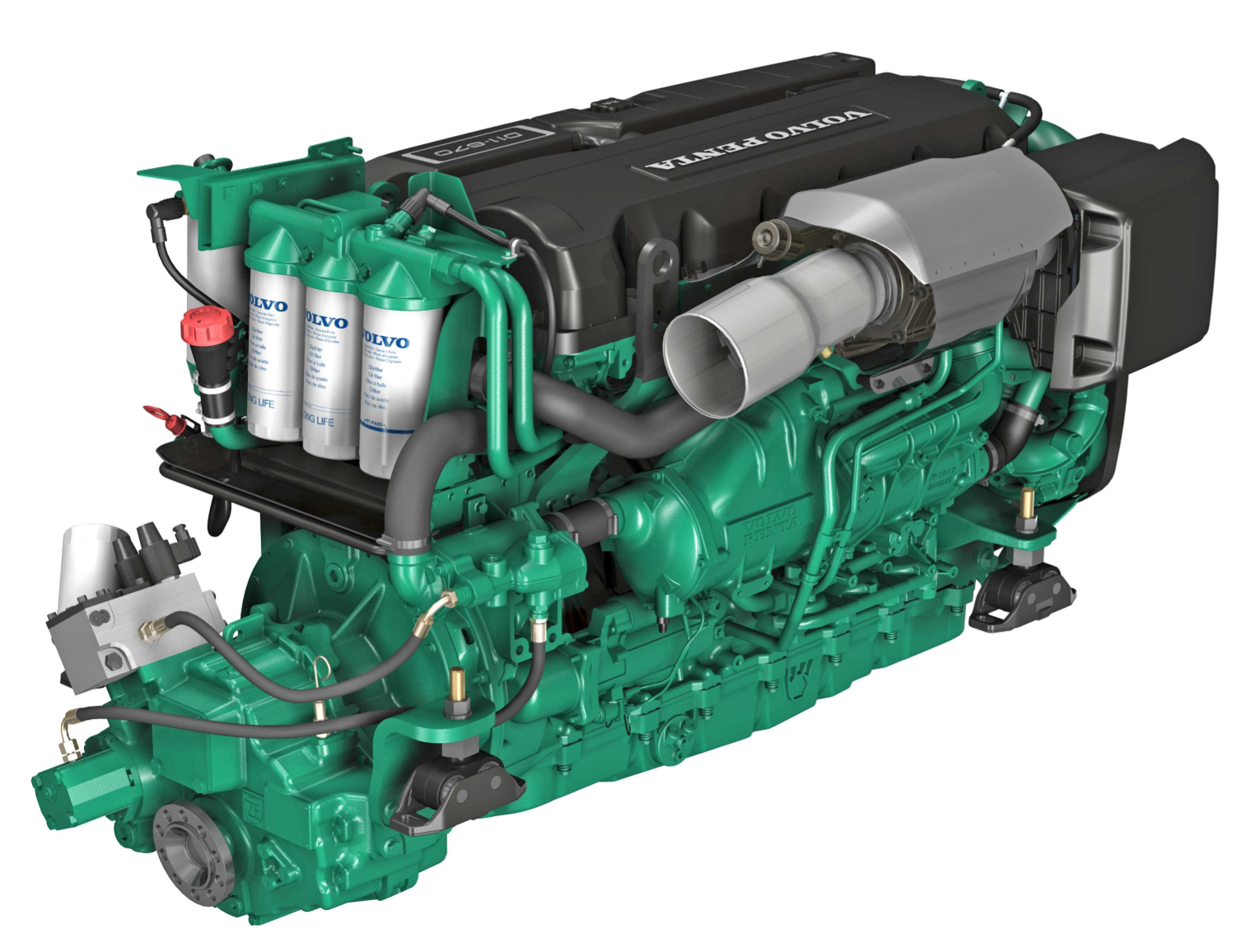

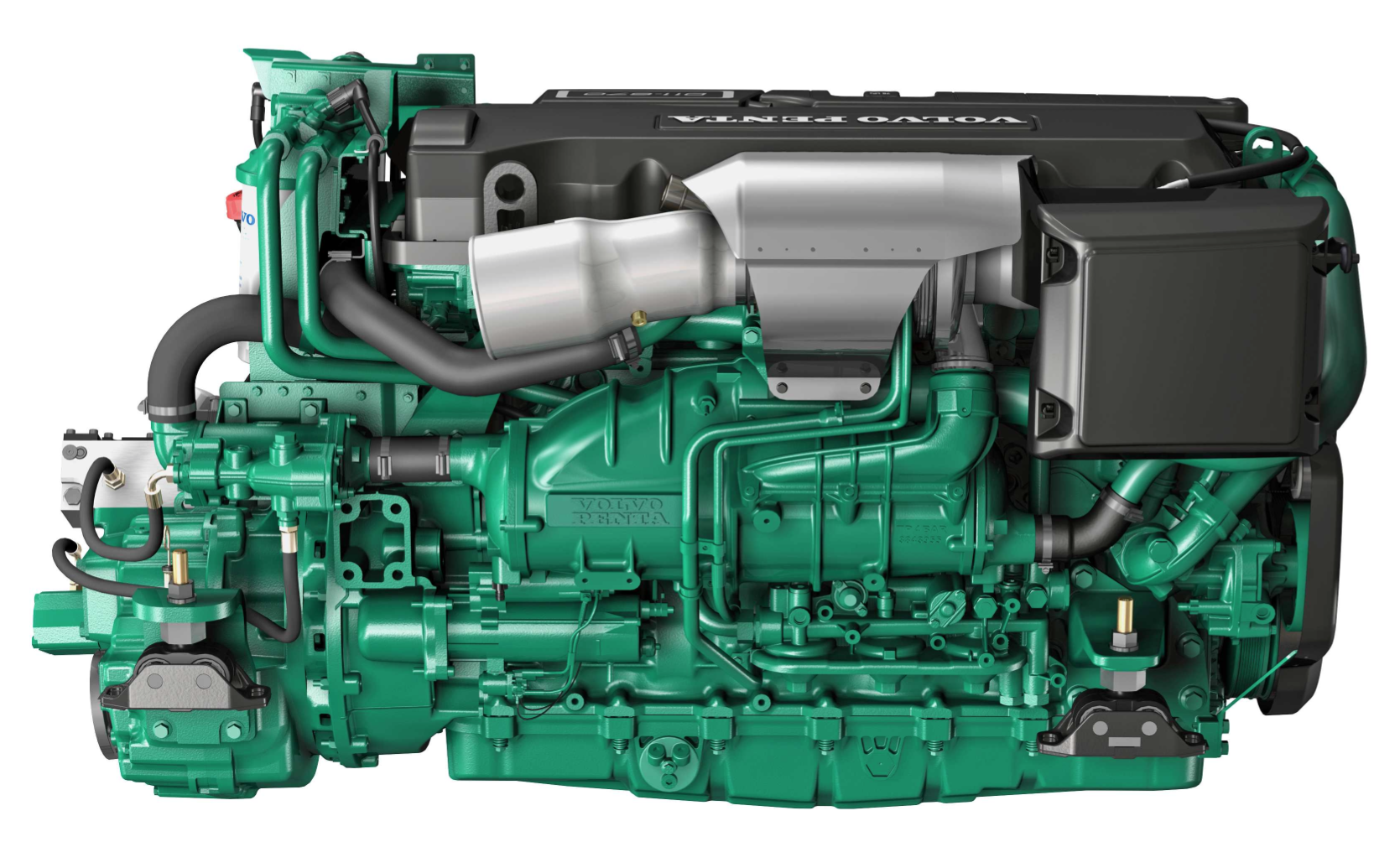

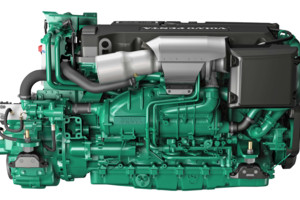

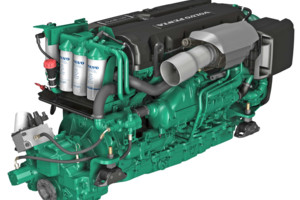

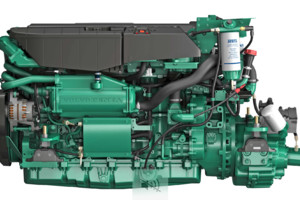

D11-510 is a reliable, powerful, fuel-efficient and clean marine diesel engine. Its based on Volvo Group´s proven engine platform and is designed by Volvo Penta to power a wide range of marine applications. This 11 litre diesel engine has a robust block with ladder frame, high pressure unit injector system, 4 valves per cylinder, twin entry wastegate turbo and charge air cooler.

All together with the electronic engine management system results in a very smooth running engine with world-class diesel performance, combined with low fuel consumption and emissions. For more informaton on technical features, please see product bulletin below.

Ready to install from - £POA

Call now for our best price and availability. Contact us on 01803 752242 or email sales@darthaven.co.uk





Specification Value
Engine D11-510
Production Period 2013-
Operation 4-stroke
Cylinder Configuration 6
Bore (mm) 123
Stroke (mm) 152
Compression Ratio 16.5:1
Displacement (litres) 10.84
Power (hp) 510HP
Max engine speed (rpm) 2250rpm
Downloads
Product bulletin D11-510 Download
Technical data D11-510 R3 Download
Technical drawing D11-510 or 625 (type approved) Bobtail Download
Technical drawing D11-510 or 625 (type approved) ZF325 IV Download
Technical drawing D11-510 or 625 (type approved) ZF325 IV Download
Marine commercial rating definitions Download
