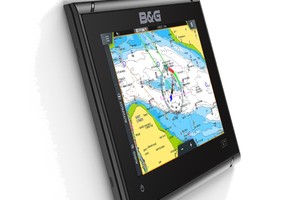

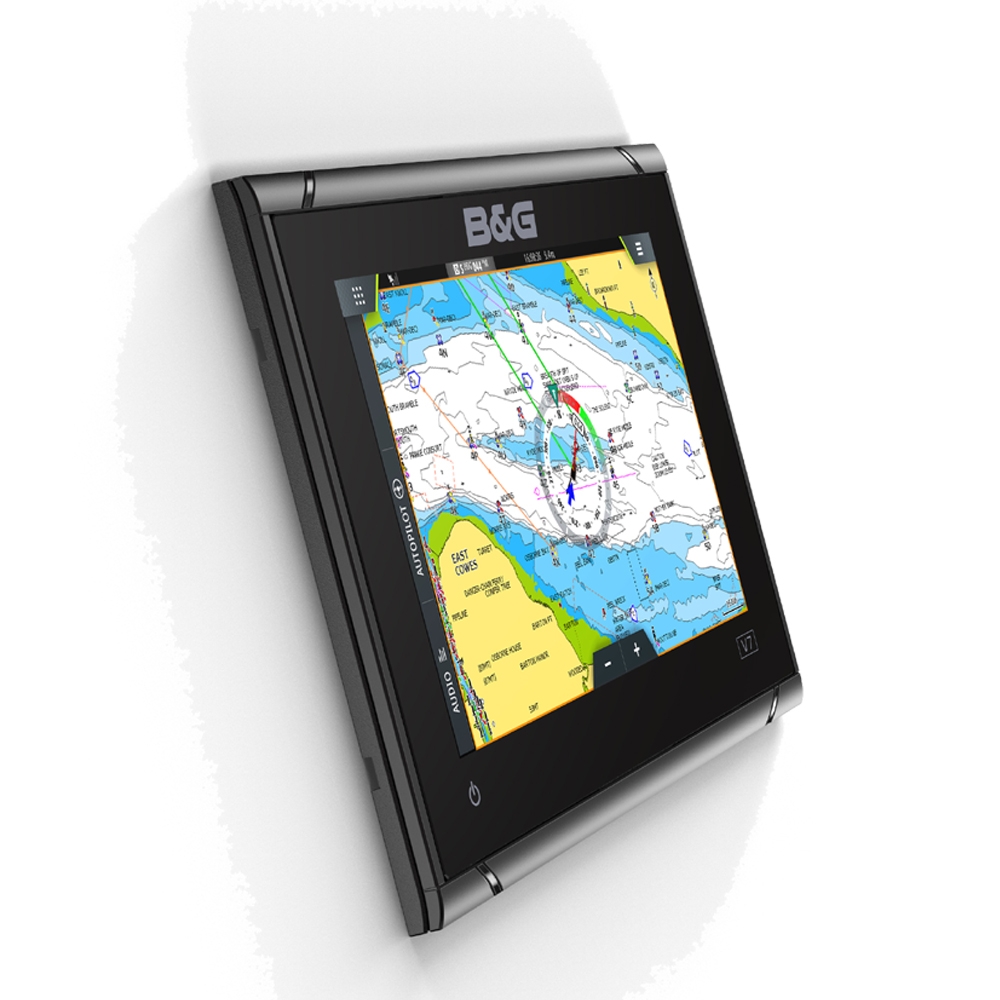

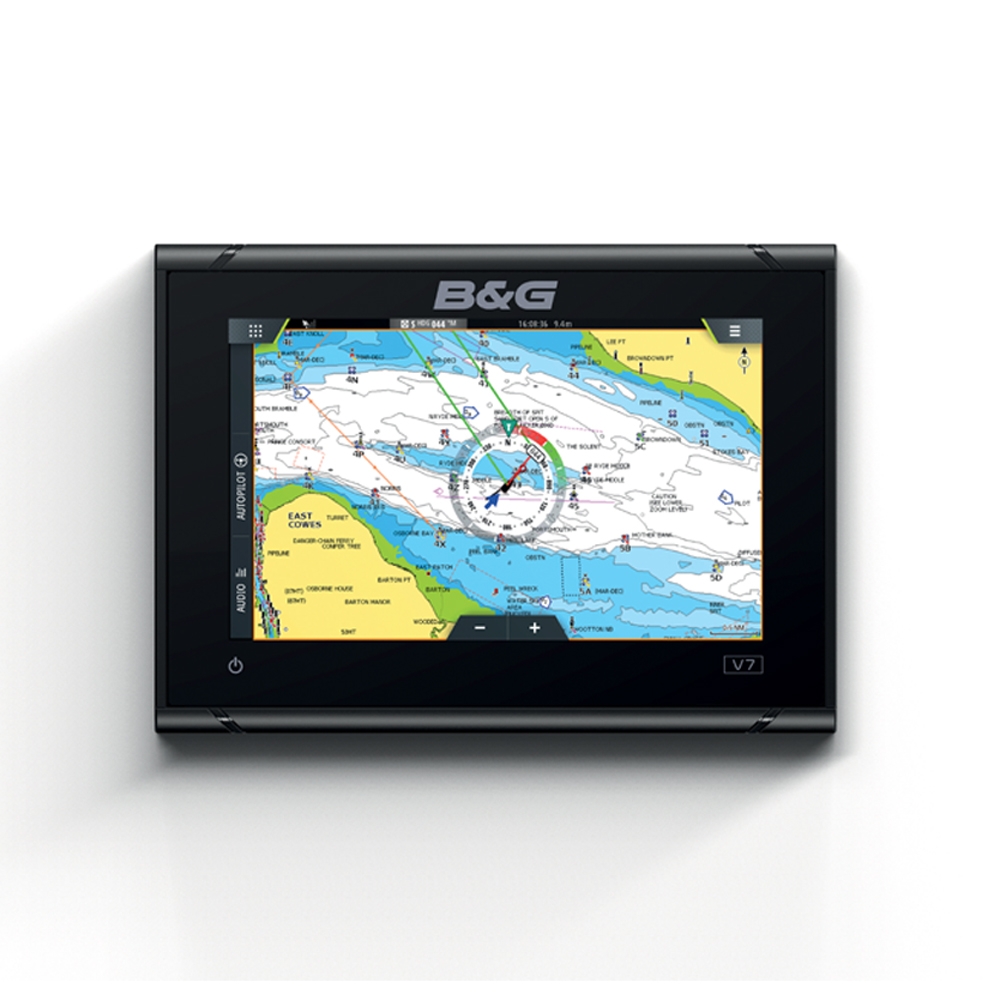

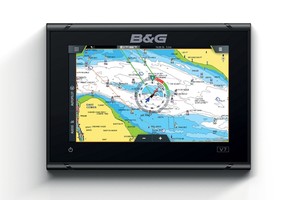

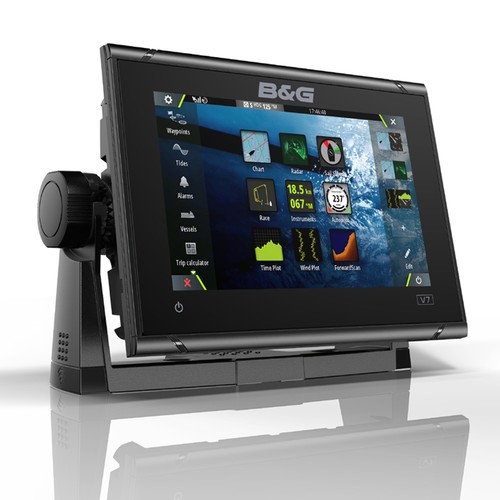

The B&G Vulcan 7 is a great sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G's unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and feature built in 10Hz GPS and Wi-Fi.



Key Features

  • ​Easy to use multi-touch display
  • Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
  • Easy to integrate - Connect Vulcan to an existing system and add basic sailing components

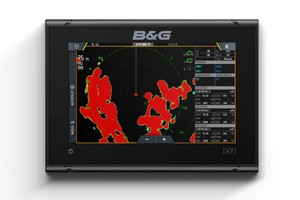

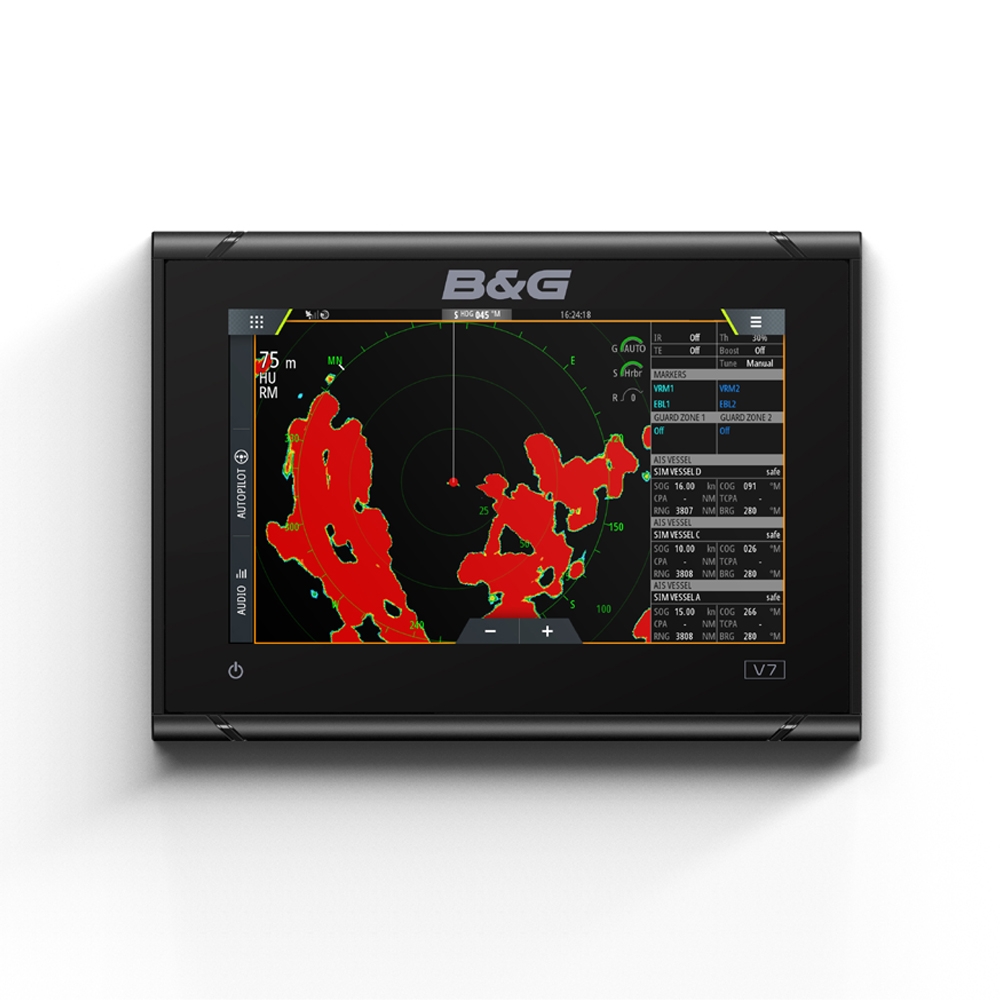

  • Broadband Radar ™ and ForwardScan™ ready
  • Integrated Wi-Fi
  • Control your B&G Pilot

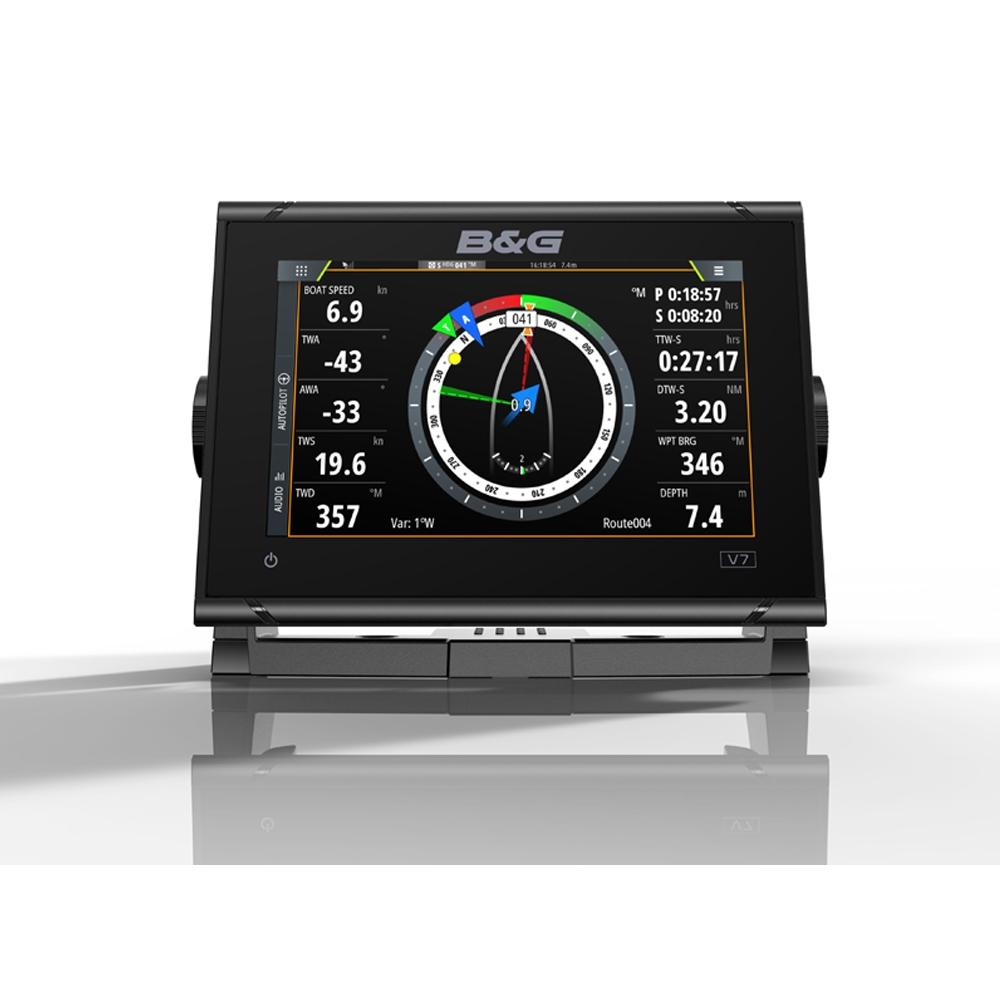

  • Instrument data display
Specification Value
Display Resolution 800x480
Screen Brightness 1200 nits
Waterproofating IPX6 & 7
Operating Temperature Range -15°C to +55°C
Storage Temperature -20 °C to +60°C
SD Card Storage 1 Micro SD slot, max. 32GB each
Ethernet Ports 1 x 5 pon yellow connector x 100 Mbits/s
Weight 1.320 kg
Warranty Period 2 Years
Power Consumption max 20 W
GPS Receiver Channels 32 Channels
Connectivity Wi-Fi Internal
Bluetooth Internal
GPS Internal, 10Hz, WASS, MSAS, EGNOS
